Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle

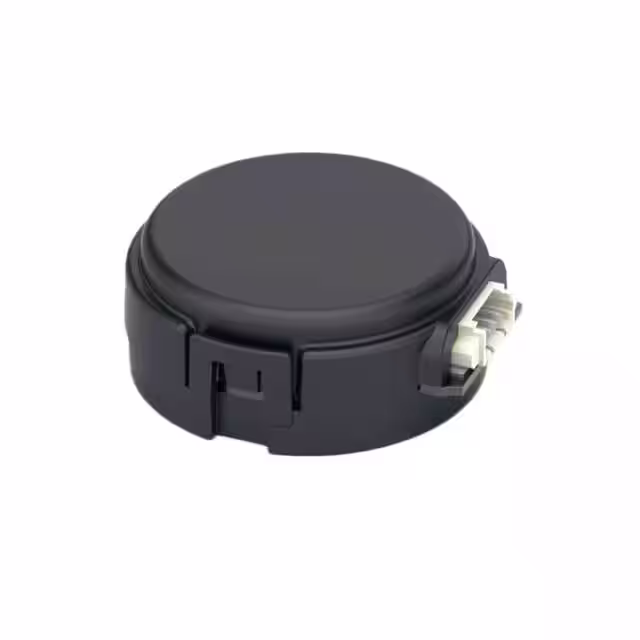

	E8T-512-197-S-D-D-2 E8T MINIATURE OPTICAL KIT ENCODE US Digital	100	56.90	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature (Incremental)	512	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

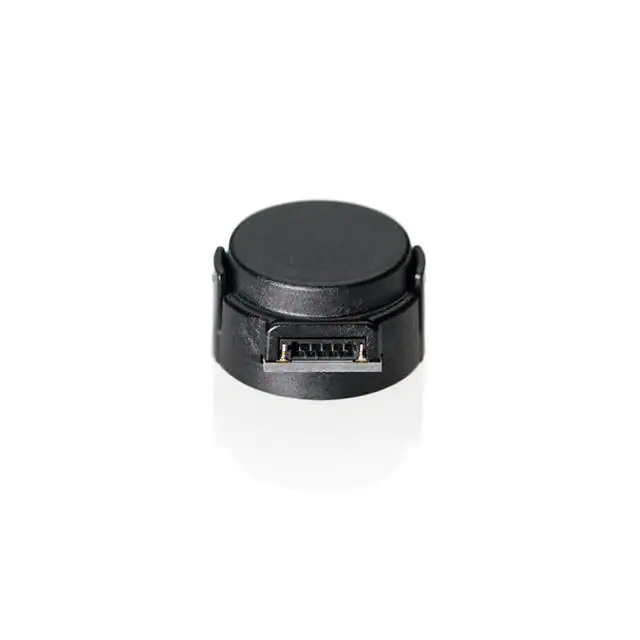

	E16-4000-079-S-D-D-2 E16 MICRO OPTICAL KIT ENCODER US Digital	2,852	67.98	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature with Index (Incremental)	4000	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

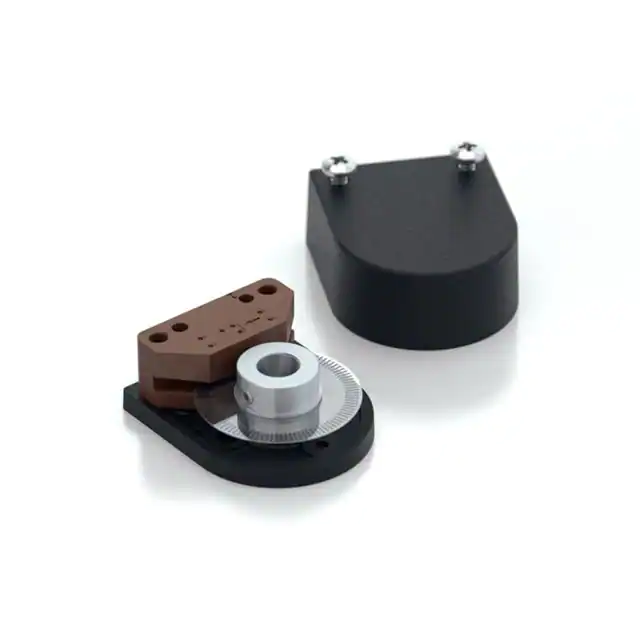

	E2-1000-197-IE-D-D-3 E2 OPTICAL KIT ENCODER US Digital	100	93.26	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature with Index (Incremental)	1000	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

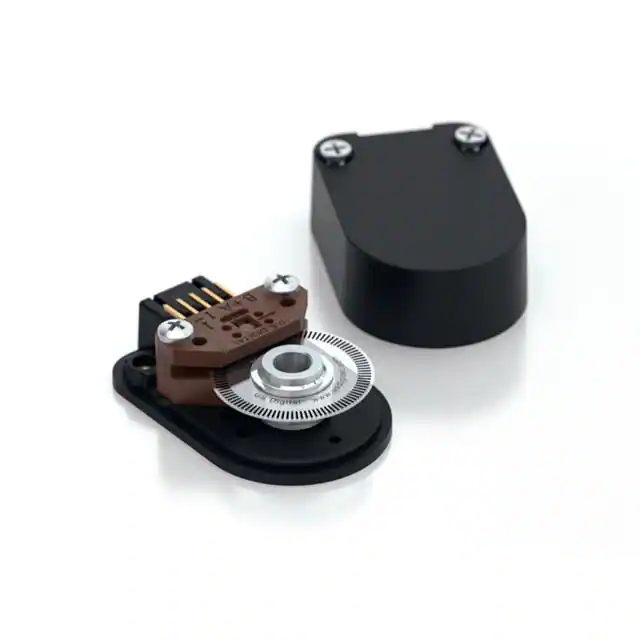

	E5-400-250-IE-S-D-D-3 E5 OPTICAL KIT ENCODER US Digital	3,220	93.26	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature with Index (Incremental)	400	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

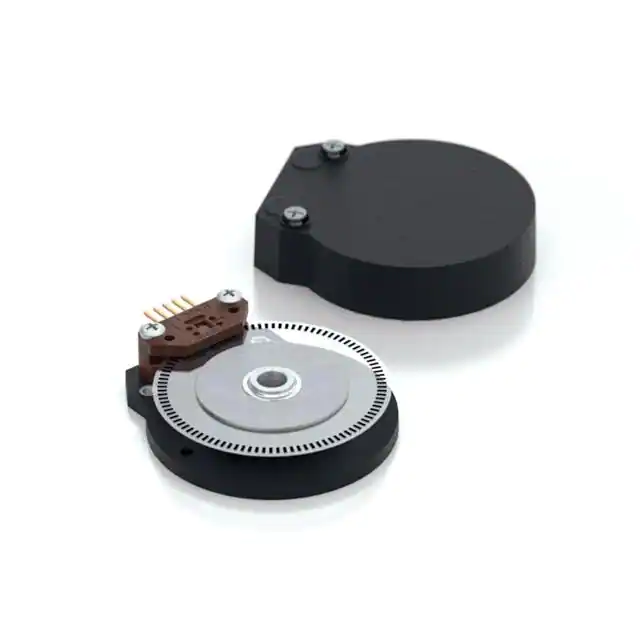

	E3-2048-250-IE-D-D-3 E3 OPTICAL KIT ENCODER US Digital	100	107.90	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature with Index (Incremental)	2048	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

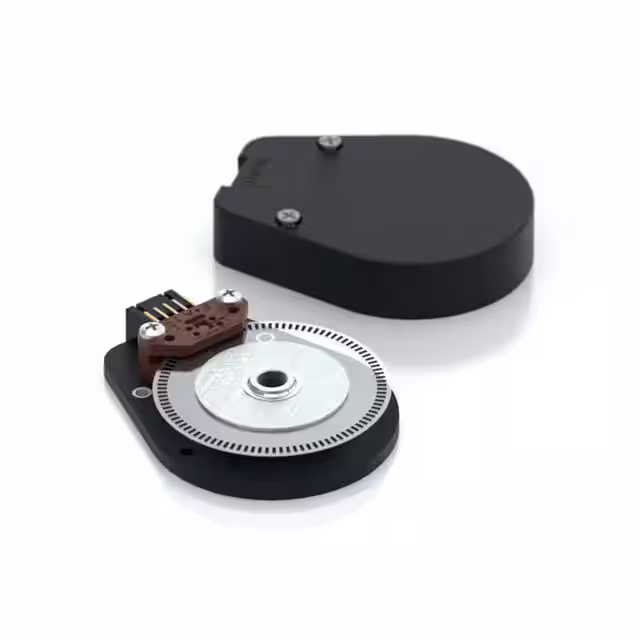

	E6-2000-375-IE-S-D-D-3 E6 OPTICAL KIT ENCODER US Digital	100	107.90	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature with Index (Incremental)	2000	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

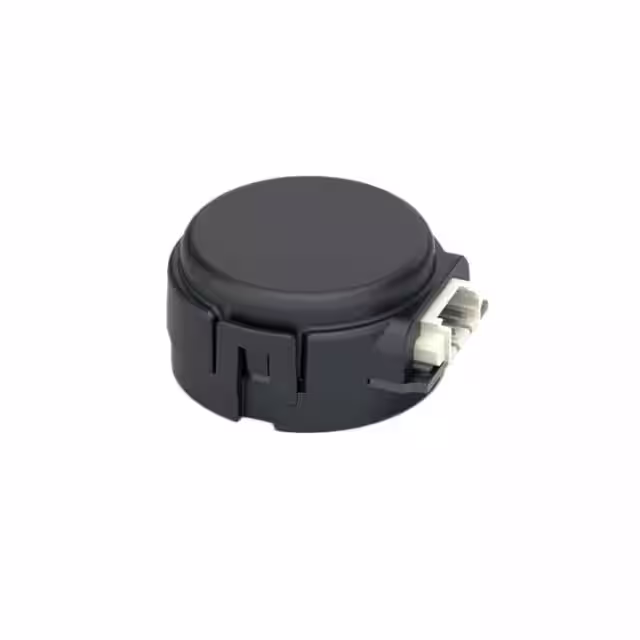

	E4T-250-197-S-D-M-2 E4T MINIATURE OPTICAL KIT ENCODE US Digital	2,300	42.40	RFQ	Datasheet	Bulk	-	Active	Incremental	Quadrature (Incremental)	250	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector

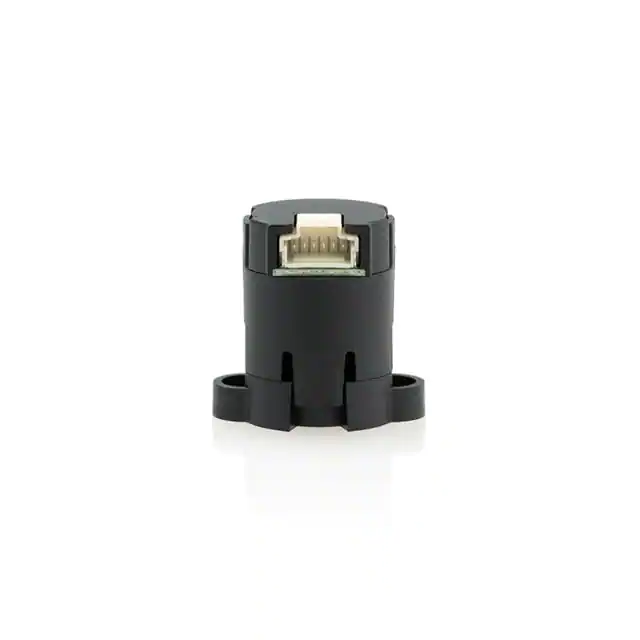

	M3K-P-1024-5-250-7-S-2 M3K MINI MAGNETIC KIT ENCODER US Digital	3,888	62.96	RFQ	Datasheet	Bulk	-	Active	Absolute, Incremental	PWM, Quadrature with Index (Incremental)	1024	4.5V ~ 5.5V	-	No	No	-	User Selectable	Connector
