Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
241-3-28 PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	2,688	7.29	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	85mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-36 PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	2,851	7.29	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	65mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-3-48 PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	2,195	7.29	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	50mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect	52.60mm L x 29.60mm W	31.20mm	2500Vrms
DPC-20-60 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	2,419	7.37	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 120mA, Series 60mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
DPC-28-40 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	3,510	7.37	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
DPC-40-30 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	2,296	7.37	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 60mA, Series 30mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
VPP36-280-B PWR XFMR LAMINATED 10VA TH Triad Magnetics	2,947	7.41	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 560mA, Series 280mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
VPP10-1000-B PWR XFMR LAMINATED 10VA TH Triad Magnetics	3,846	7.41	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
VPP12-800-B PWR XFMR LAMINATED 10VA TH Triad Magnetics	2,391	7.41	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.6A, Series 800mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
VPP16-620-B PWR XFMR LAMINATED 10VA TH Triad Magnetics	2,415	7.41	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.25A, Series 620mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
VPP20-500-B PWR XFMR LAMINATED 10VA TH Triad Magnetics	2,905	7.41	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
VPP28-360-B PWR XFMR LAMINATED 10VA TH Triad Magnetics	3,279	7.41	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 720mA, Series 360mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms

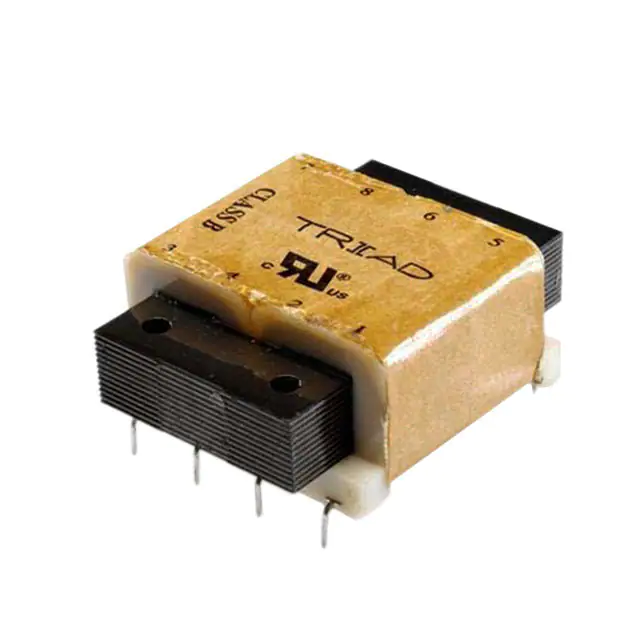

FP10-250-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,679	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP24-100-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,559	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP30-85-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,759	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 160mA, Series 80mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP34-75-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,115	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 150mA, Series 75mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP20-125-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,300	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 250mA, Series 125mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP12-200 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,155	7.43	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP30-85 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,873	7.43	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 160mA, Series 80mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP16-150-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,902	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
