Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
PC-40-110 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	2,516	9.00	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 220mA, Series 110mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DPC-56-20 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	3,994	9.00	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms

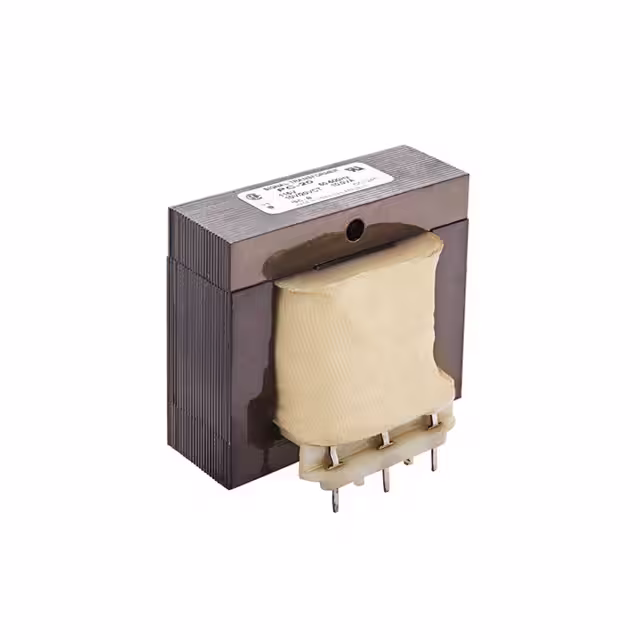

PC-10-440 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	2,420	9.00	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 880mA, Series 440mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
PC-56-80 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	2,118	9.00	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 160mA, Series 80mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
PC-120-85 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,331	9.19	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 170mA, Series 85mA	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms

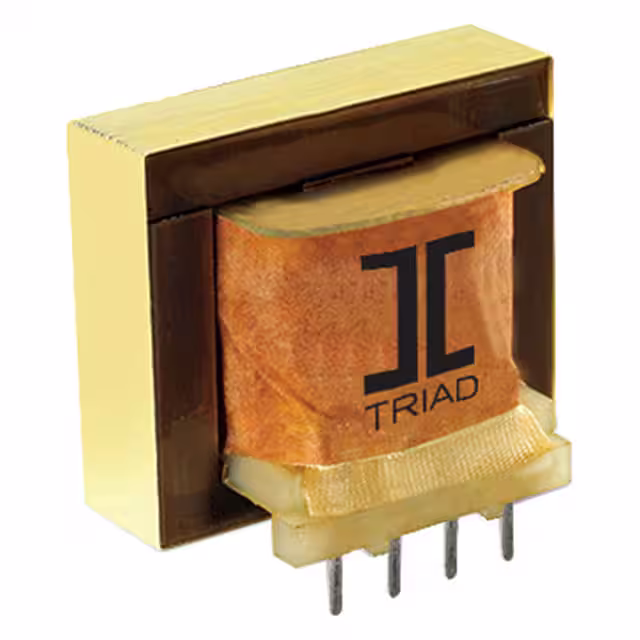

F-3132P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	2,302	9.19	RFQ	Datasheet	Box	Dual Primary	Active	Laminated Core	115V, 230V	Parallel 7.5V, Series 15V	Parallel 200mA, Series 100mA	Dual	Dual	No	1.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	28.58mm	1500Vrms

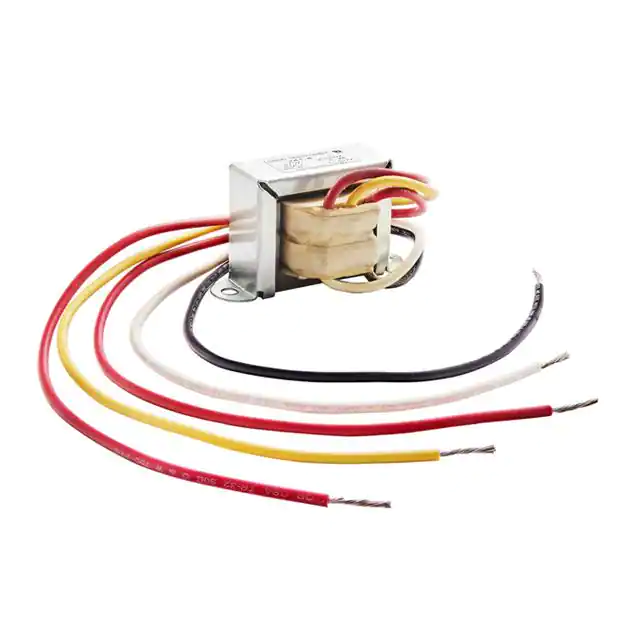

241-4-16L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,517	9.26	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	16V	400mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-24L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,680	9.26	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	250mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-28L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,848	9.26	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	200mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-36L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,202	9.26	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	170mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-48L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,463	9.26	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	125mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-56L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,711	9.26	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	110mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-20 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,167	9.31	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	20V	300mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-36 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,699	9.31	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	36V	170mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-28 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,997	9.31	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	28V	200mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-48 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,886	9.31	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	125mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-56 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,439	9.31	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	110mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
VPP12-400-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	2,322	9.37	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 800mA, Series 400mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
241-4-10L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,538	9.41	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	10V	600mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms

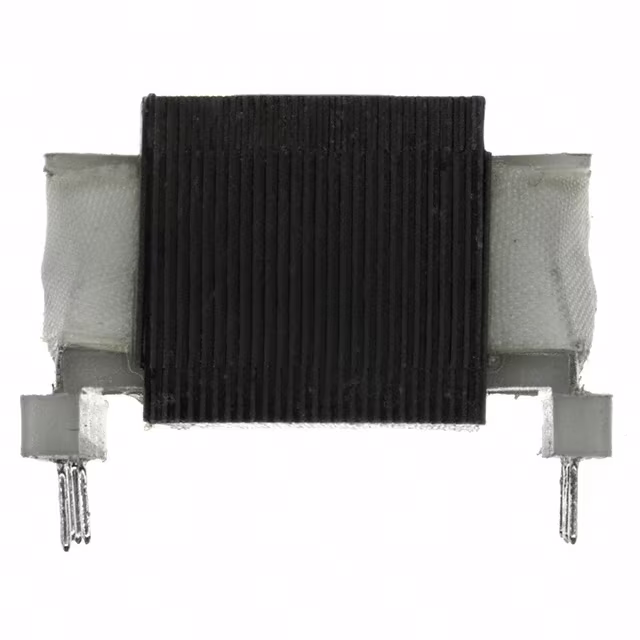

DPC-16-55 PWR XFMR LAMINATED 1VA TH Signal Transformer	3,372	9.42	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 110mA, Series 55mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
