Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

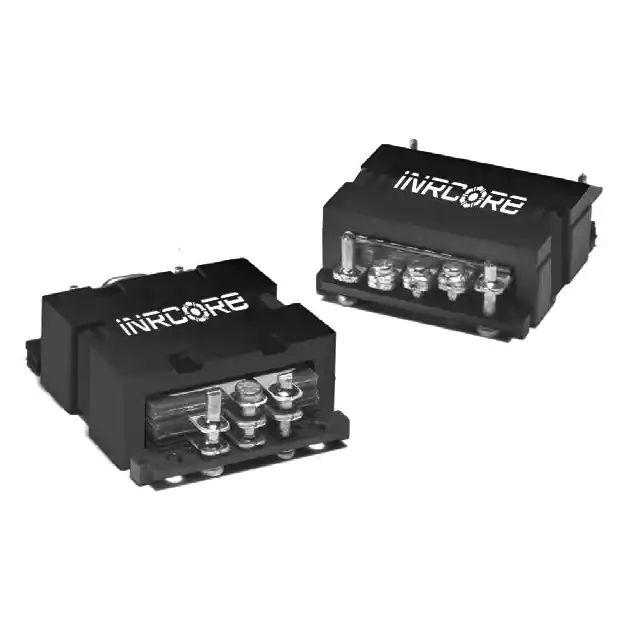

R8248NL TRANSFORMER PLANAR 215UH iNRCORE, LLC	2,616	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8210NL TRANSFORMER PLANAR 340UH iNRCORE, LLC	2,049	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8232NL TRANSFORMER PLANAR 120UH iNRCORE, LLC	2,399	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Single, Multiple Taps	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8244NL TRANSFORMER PLANAR 120UH iNRCORE, LLC	3,848	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual, Multiple Taps	Yes	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8212NL TRANSFORMER PLANAR 480UH iNRCORE, LLC	2,041	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8208NL TRANSFORMER PLANAR 216UH iNRCORE, LLC	2,660	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8239NL TRANSFORMER PLANAR 85UH iNRCORE, LLC	3,179	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8209NL TRANSFORMER PLANAR 860UH iNRCORE, LLC	3,913	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Single, Multiple Taps	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8242NL TRANSFORMER PLANAR 54UH iNRCORE, LLC	2,027	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual, Multiple Taps	Yes	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8203NL TRANSFORMER PLANAR 340UH iNRCORE, LLC	2,399	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Single, Multiple Taps	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8235NL TRANSFORMER PLANAR 85UH iNRCORE, LLC	3,913	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8216NL TRANSFORMER PLANAR 860UH iNRCORE, LLC	2,369	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8201NL TRANSFORMER PLANAR 216UH iNRCORE, LLC	2,106	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Single, Multiple Taps	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8237NL TRANSFORMER PLANAR 165UH iNRCORE, LLC	3,421	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8238NL TRANSFORMER PLANAR 54UH iNRCORE, LLC	2,786	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8243NL TRANSFORMER PLANAR 85UH iNRCORE, LLC	3,670	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual, Multiple Taps	Yes	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8214NL TRANSFORMER PLANAR 660UH iNRCORE, LLC	3,993	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	10.20mm	1750VDC
R8234NL TRANSFORMER PLANAR 54UH iNRCORE, LLC	2,953	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8245NL TRANSFORMER PLANAR 165UH iNRCORE, LLC	2,785	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual, Multiple Taps	Yes	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
R8247NL TRANSFORMER PLANAR 215UH iNRCORE, LLC	3,067	8.77	RFQ	Datasheet	Tube	-	Active	Planar	-	-	-	Dual	Dual	No	250W	Surface Mount	Solder, Quick Connect	29.46mm L x 25.40mm W	9.10mm	1750VDC
