Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
PL20-10-130B PWR XFMR LAMINATED 20VA TH Tamura	3,164	RFQ	Datasheet	Bulk	PL20-xx-130B	Obsolete	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.28mm	3500Vrms
PL56-12-130B PWR XFMR LAMINATED 56VA TH Tamura	3,284	RFQ	Datasheet	Bulk	PL56-xx-130B	Obsolete	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 8.8A, Series 4.4A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 64.00mm W	48.50mm	3500Vrms

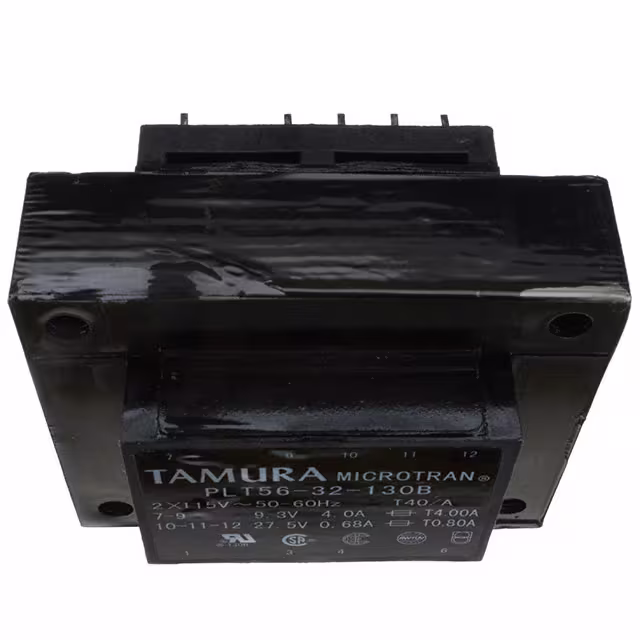

PLT56-32-130B PWR XFMR LAMINATED 56VA TH Tamura	2,930	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	115V, 230V	Parallel 9.3V, Series 27.5V	Parallel 680mA, Series 4A	Dual	Dual	Yes	56VA	Through Hole	PC Pin	76.20mm L x 64.00mm W	48.50mm	3500Vrms

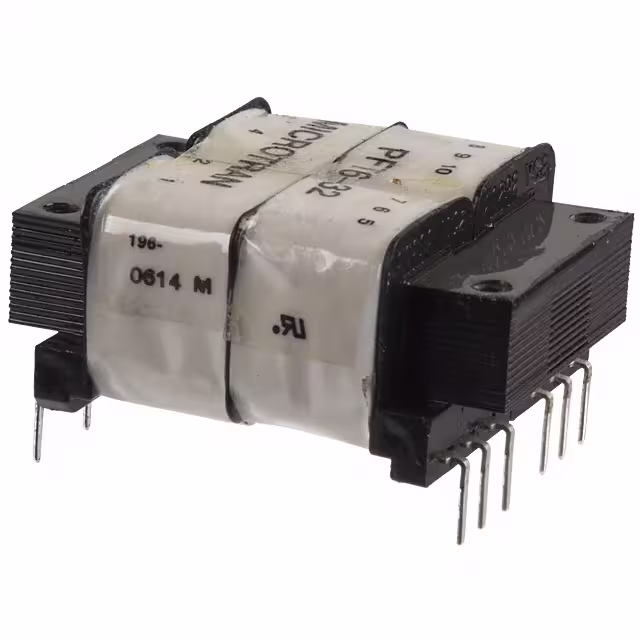

PFT6-32 PWR XFMR SEMI-TORO 6VA TH Tamura	2,794	RFQ	Datasheet	Tube	-	Obsolete	Semi-Toroidal	115V, 230V	Parallel 17.5V, Series 31.5V	Parallel 155mA, Series 65mA	Dual	Dual	Yes	6VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	21.60mm	1500Vrms

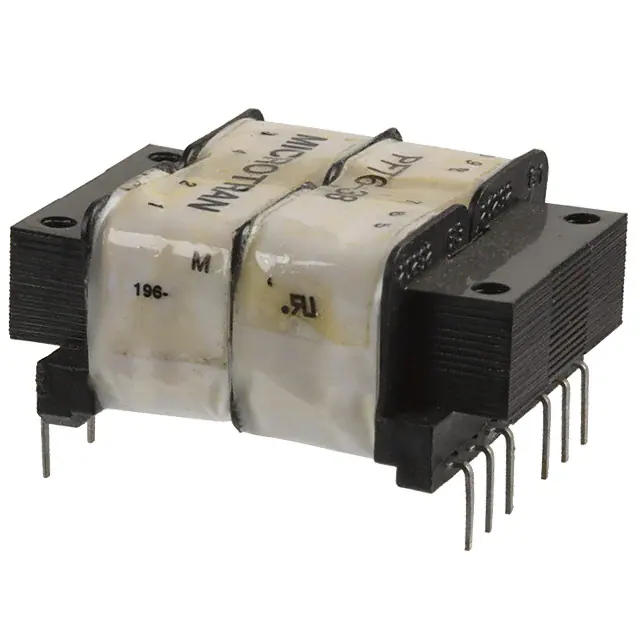

PFT6-38 PWR XFMR SEMI-TORO 6VA TH Tamura	3,183	RFQ	Datasheet	Tube	-	Obsolete	Semi-Toroidal	115V, 230V	Parallel 17.5V, Series 37.5V	Parallel 155mA, Series 60mA	Dual	Dual	Yes	6VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	21.60mm	1500Vrms

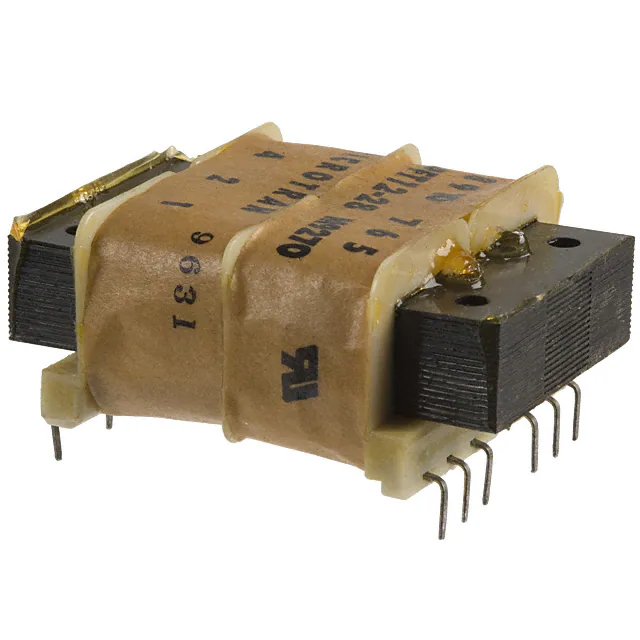

PFT12-28 PWR XFMR SEMI-TORO 12VA TH Tamura	3,530	RFQ	Datasheet	Tube	-	Obsolete	Semi-Toroidal	115V, 230V	28V, 16V	360mA, 187mA	Dual	Dual	Yes	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.00mm	1500Vrms

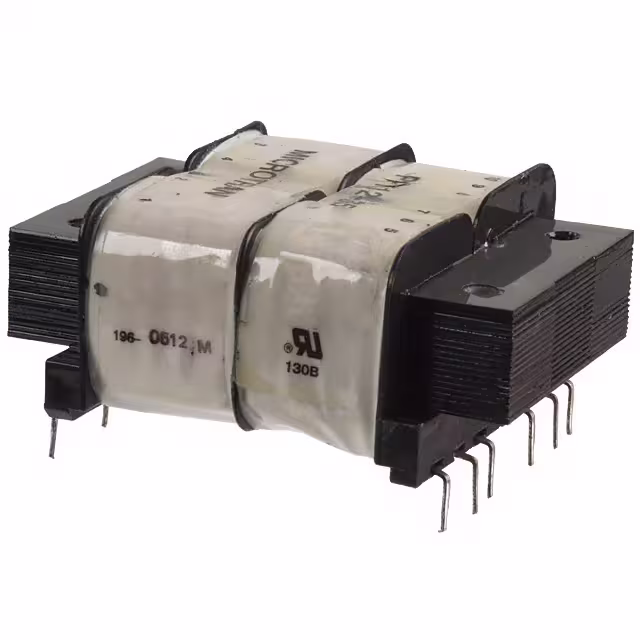

PFT12-35 PWR XFMR SEMI-TORO 12VA TH Tamura	2,103	RFQ	Datasheet	Tube	-	Obsolete	Semi-Toroidal	115V, 230V	35V, 16V	360mA, 150mA	Dual	Dual	Yes	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.00mm	1500Vrms

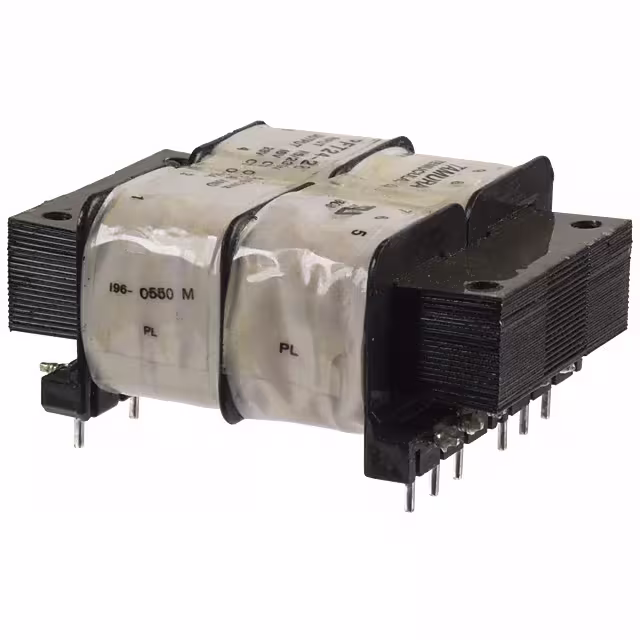

PFT24-28 PWR XFMR SEMI-TORO 24VA TH Tamura	3,924	RFQ	Datasheet	Tube	-	Obsolete	Semi-Toroidal	115V, 230V	Parallel 16V, Series 28V	Parallel 720mA, Series 375mA	Dual	Dual	Yes	24VA	Through Hole	PC Pin	73.80mm L x 58.00mm W	31.70mm	1500Vrms

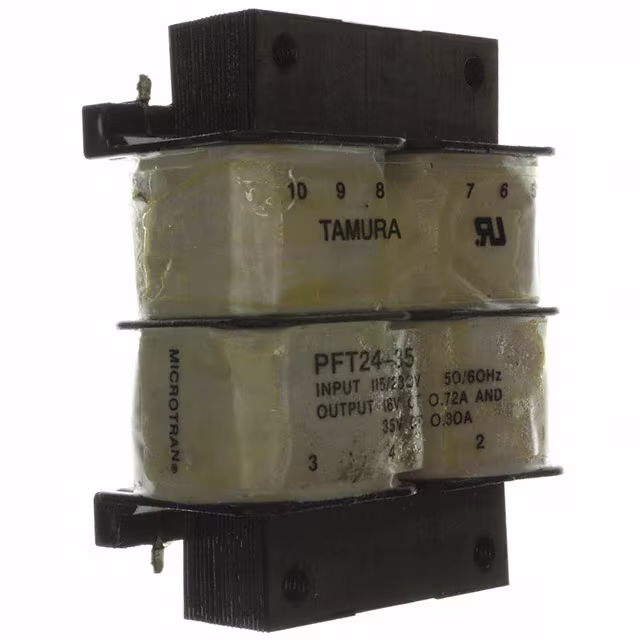

PFT24-35 PWR XFMR SEMI-TORO 24VA TH Tamura	3,313	RFQ	Datasheet	Bulk	-	Obsolete	Semi-Toroidal	115V, 230V	Parallel 16V, Series 35V	Parallel 720mA, Series 300mA	Dual	Dual	Yes	24VA	Through Hole	PC Pin	71.70mm L x 58.00mm W	31.70mm	1500Vrms
TX12-10V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	2,791	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-115V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	2,017	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 100mA, Series 50mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-12V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,712	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-15V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	2,507	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 800mA, Series 400mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-17V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,399	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 700mA, Series 350mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-20V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,476	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 600mA, Series 300mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-28V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,183	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 425mA, Series 210mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-44V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,489	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 44V, Series 88V	Parallel 270mA, Series 135mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-5V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,892	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-60V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	2,997	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 60V, Series 120V	Parallel 200mA, Series 100mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
TX12-6.3V PWR XFMR SEMI-TORO 12VA TH Bourns Inc.	3,305	RFQ	Datasheet	-	TX	Obsolete	Semi-Toroidal	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.9A, Series 950mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 50.80mm W	27.18mm	2000Vrms
