Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
4000-05E07K999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,455	RFQ	Datasheet	Box	4000, Products Unlimited	Obsolete	Laminated Core	120V, 208V, 240V	24V	-	Single	Single	No	40VA	Chassis Mount	Wire Leads	90.47mm L x 55.37mm W	55.58mm	-
4000-03C02K999 PWR XFMR LAMINATED 20VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,346	RFQ	Datasheet	Box	4000, Products Unlimited	Obsolete	Laminated Core	277V	24V	-	Single	Single	No	20VA	Chassis Mount	Wire Leads	82.55mm L x 44.07mm W	47.75mm	-

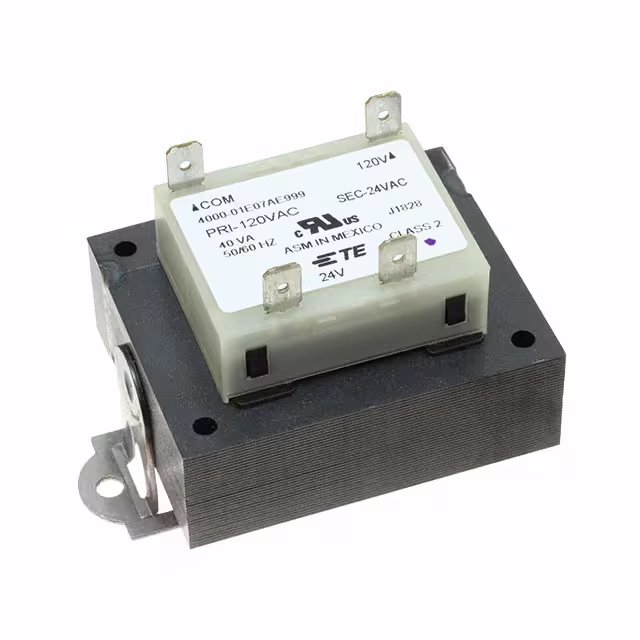

4000-01E07AE999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,363	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	90.47mm L x 55.58mm W	61.47mm	-

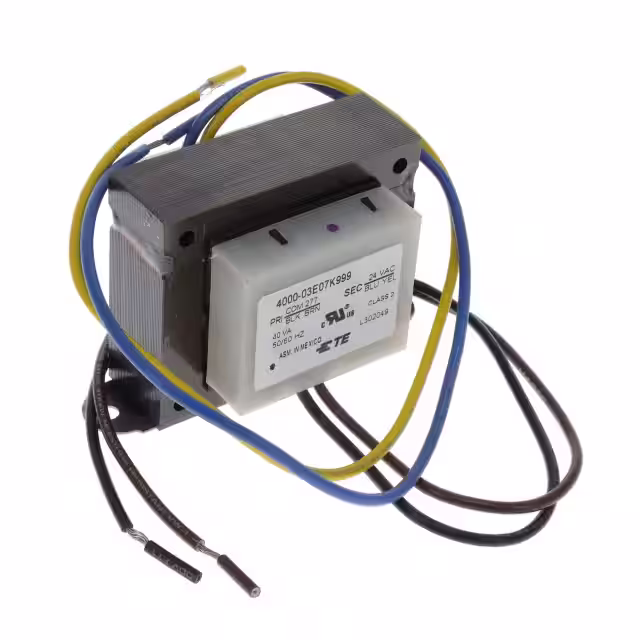

4000-03E07K999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,776	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	277V	24V	-	Single	Single	No	40VA	Chassis Mount	Wire Leads	90.47mm L x 54.61mm W	55.58mm	-

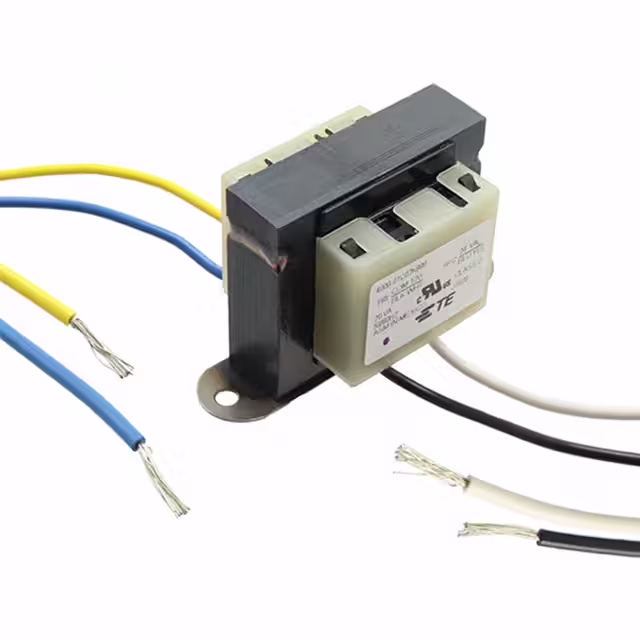

4000-01C02K999 PWR XFMR LAMINATED 20VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,791	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	20VA	Chassis Mount	Wire Leads	82.55mm L x 44.07mm W	47.75mm	-

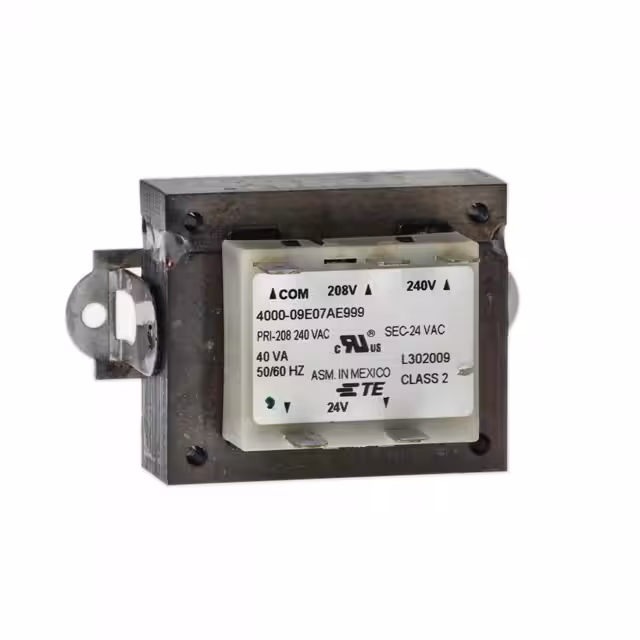

4000-09E07AE999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,626	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	208V, 240V	24V	-	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	90.47mm L x 55.58mm W	-	-
4000-51E07K999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,760	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	380V, 415V	24V	-	Single	Single	No	40VA	Chassis Mount	Wire Leads	90.47mm L x 54.61mm W	55.58mm	-
4000-01AW18K999 PWR XFMR LAMINATED 50VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,919	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	50VA	Chassis Mount	Wire Leads	90.47mm L x 66.55mm W	55.57mm	-

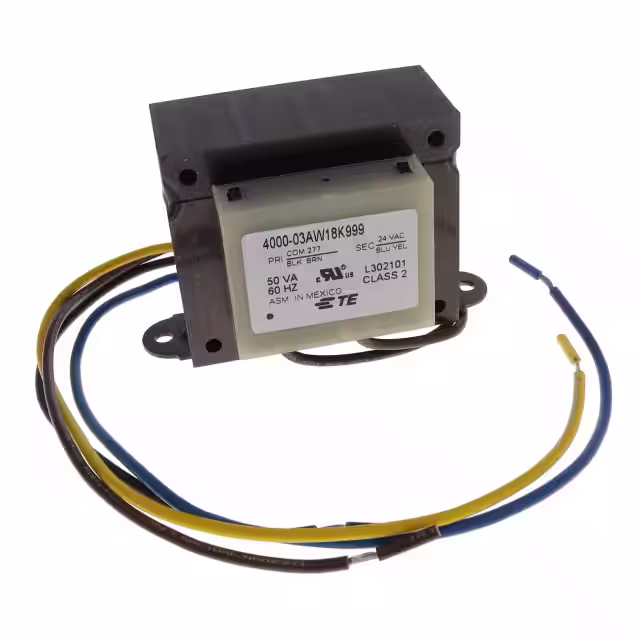

4000-03AW18K999 PWR XFMR LAMINATED 50VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,315	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	277V	24V	-	Single	Single	No	50VA	Chassis Mount	Wire Leads	90.47mm L x 66.55mm W	55.58mm	-
4000-09AW18K999 PWR XFMR LAMINATED 50VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,817	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	208V, 240V	24V	-	Single	Single	No	50VA	Chassis Mount	Wire Leads	90.47mm L x 66.55mm W	55.58mm	-

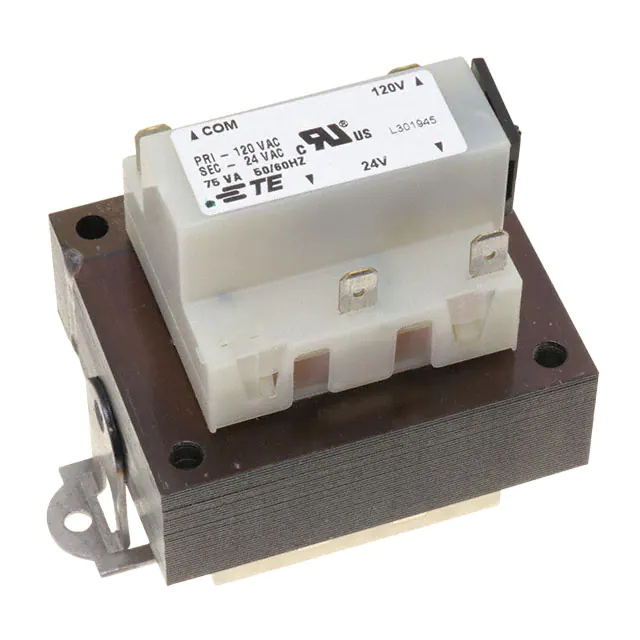

4000-01J15AE999 PWR XFMR LAMINATED 75VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,141	RFQ	Datasheet	Box	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	75VA	Chassis Mount	Solder, Quick Connect	101.60mm L x 63.50mm W	-	-

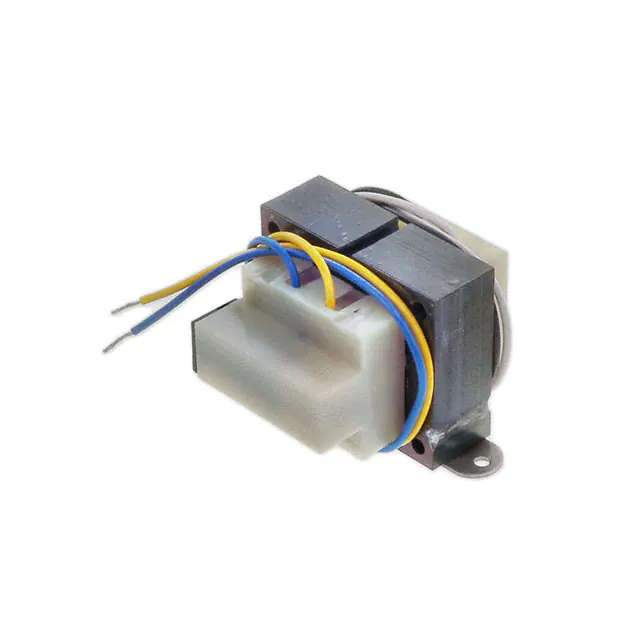

4000-01J15K999 PWR XFMR LAMINATED 75VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,253	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	75VA	Chassis Mount	Wire Leads	101.60mm L x 63.50mm W	46.48mm	-

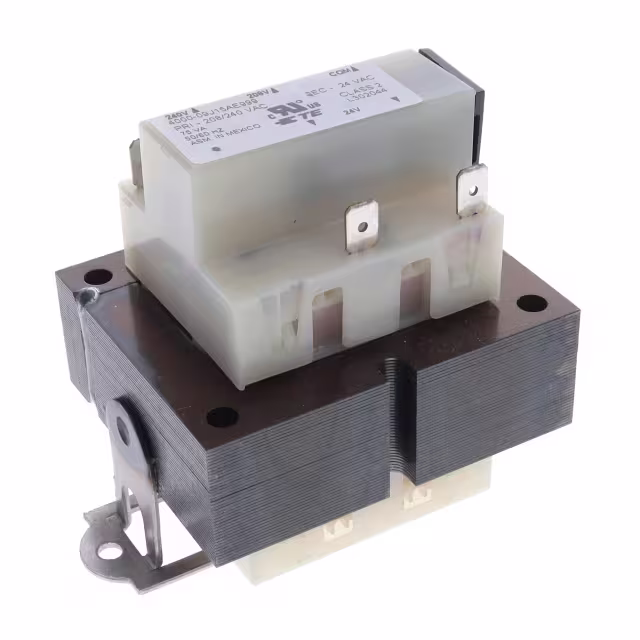

4000-09J15AE999 PWR XFMR LAMINATED 75VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,842	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	208V, 240V	24V	-	Single	Single	No	75VA	Chassis Mount	Solder, Quick Connect	101.60mm L x 63.50mm W	83.31mm	-

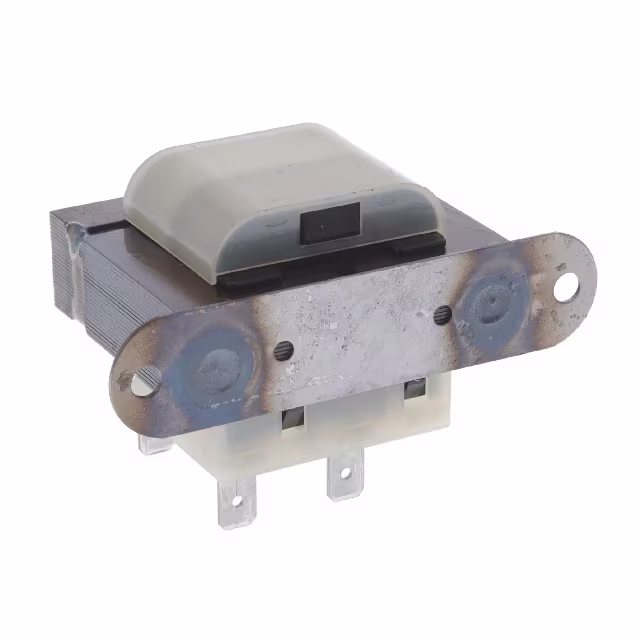

4000-01C02BB999 PWR XFMR LAMINATED 20VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,449	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	20VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 35.56mm W	42.67mm	-
4000-01M04AE999 PWR XFMR LAMINATED 30VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,723	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	30VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 47.75mm W	62.23mm	-
4000-01E07BB999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,266	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	-	55.57mm	-
4000-04E07K999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,160	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	480V	24V	-	Single	Single	No	40VA	Chassis Mount	Wire Leads	90.47mm L x 55.37mm W	55.58mm	-

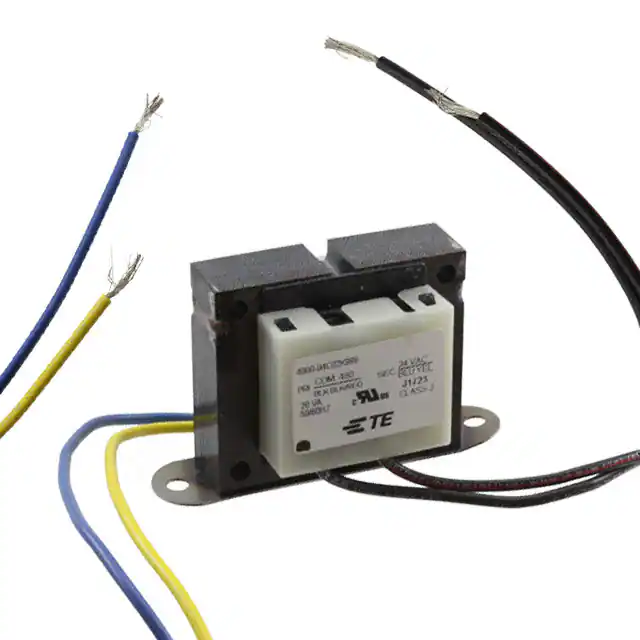

4000-04C02K999 PWR XFMR LAMINATED 20VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,002	RFQ	Datasheet	Box	4000, Products Unlimited	Obsolete	Laminated Core	480V	24V	-	Single	Single	No	20VA	Chassis Mount	Wire Leads	82.55mm L x 44.07mm W	47.75mm	-
4000-04E07AE999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,530	RFQ	Datasheet	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	480V	24V	-	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	90.47mm L x 55.58mm W	-	-
4000-51J15K999 PWR XFMR LAMINATED 75VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,644	RFQ	Datasheet	Box	4000, Products Unlimited	Active	Laminated Core	380V, 415V	24V	-	Single	Single	No	75VA	Chassis Mount	Wire Leads	101.60mm L x 63.50mm W	-	-
