Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Thread/Screw/HoleSize	Diameter-Inside	Diameter-Outside	Diameter-Shoulder	Thickness-Overall	Length-BelowHead
10SC008075 SHOULDER WASHER, NATURAL, NYLON Essentra Components	2,120	0.16	RFQ	Datasheet	Bulk	MicroPlastics, SC	Active	#8	0.173 (4.39mm)	0.205 (5.21mm)	0.205 (5.21mm)	-	0.750 (19.05mm) 3/4
3235 WASHER SHOULDER #8 FIBRE Keystone Electronics	3,002	0.17	RFQ	Datasheet	Bulk	-	Active	#8	0.170 (4.32mm)	0.313 (7.95mm) 5/16	0.218 (5.54mm)	0.093 (2.36mm)	0.031 (0.79mm) 1/32
12SWS0852 SHOULDER WASHER .136 ID .375 OD Essentra Components	2,648	0.17	RFQ		Bulk	MicroPlastics, SW	Active	-	-	0.375 (9.53mm) 3/8	-	-	-
12SWS0862 SHOULDER WASHER, NATURAL, NYLON Essentra Components	2,237	0.18	RFQ		Bulk	MicroPlastics, SW	Active	#10	0.196 (4.98mm)	0.287 (7.29mm)	-	-	-
10SCM003004 SHOULDER WASHER 3.1MM ID 6.2MM O Essentra Components	100	0.13	RFQ		Bulk	MicroPlastics, SC	Active	-	0.122 (3.10mm)	0.244 (6.20mm)	0.157 (4.00mm)	0.039 (1.00mm)	0.157 (4.00mm)
10SCM003006 SHOULDER WASHER 3.1MM ID 6.2MM O Essentra Components	3,238	0.13	RFQ		Bulk	MicroPlastics, SC	Active	-	0.122 (3.10mm)	0.244 (6.20mm)	0.157 (4.00mm)	0.039 (1.00mm)	0.236 (6.00mm)
12SWS2574 SHOULDER WASHER .380 ID .750 OD Essentra Components	3,480	0.22	RFQ		Bulk	MicroPlastics, SW	Active	-	0.380 (9.65mm)	0.750 (19.05mm) 3/4	-	0.062 (1.58mm)	-

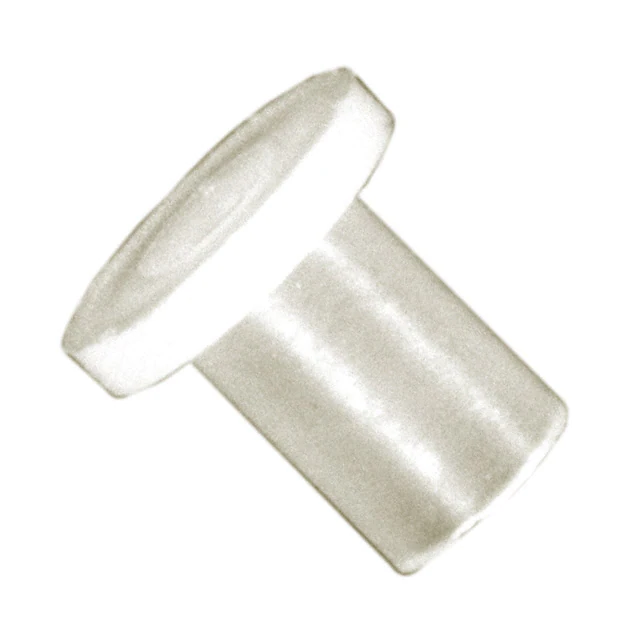

MNI-6-16 WASHER SHOULDER #6 NYLON Essentra Components	3,687	0.23	RFQ	Datasheet	Bulk	Richco, MNI	Active	#6	0.140 (3.56mm)	0.290 (7.37mm)	0.170 (4.32mm)	0.297 (7.54mm)	0.250 (6.35mm) 1/4
12SWS2512 SHOULDER WASHER .263 ID .687 OD Essentra Components	3,996	0.23	RFQ		Bulk	MicroPlastics, SW	Active	-	0.263 (6.68mm)	-	-	0.046 (1.17mm)	-

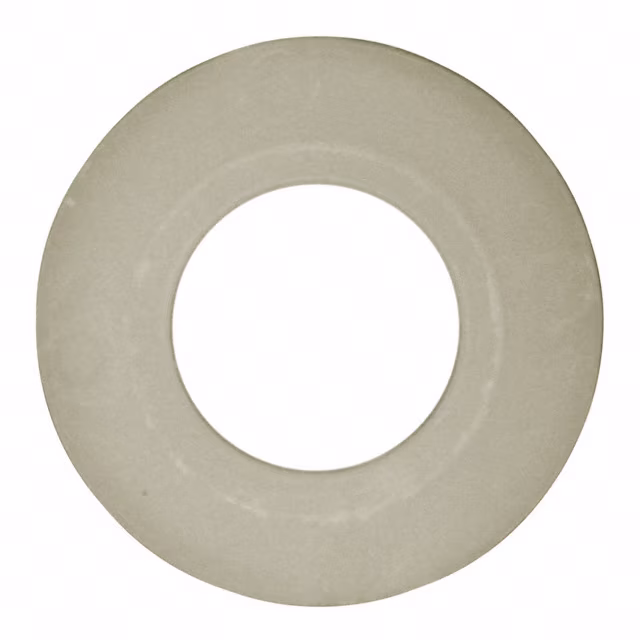

MNI-10-4 WASHER SHOULDER #10 NYLON Essentra Components	2,918	0.25	RFQ	Datasheet	Bulk	Richco, MNI	Active	#10	0.200 (5.08mm)	0.399 (10.13mm)	0.260 (6.60mm)	0.126 (3.20mm)	0.063 (1.60mm)

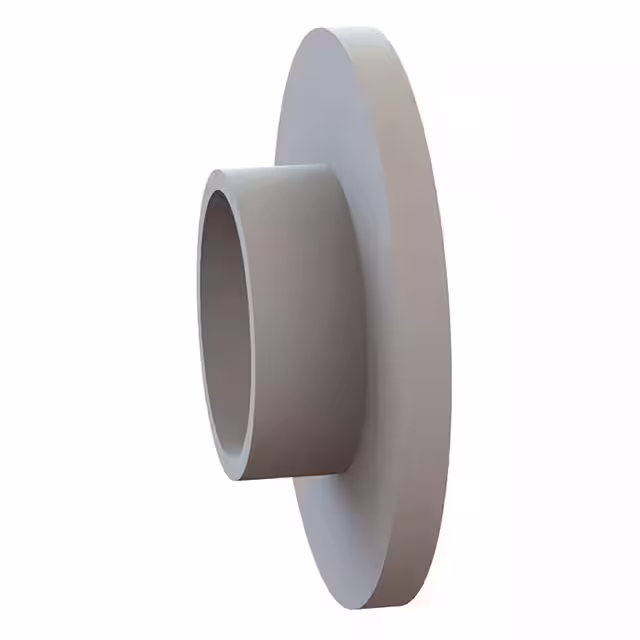

12SWS1151 SHOULDER WASHER, NATURAL, NYLON Essentra Components	2,600	0.27	RFQ		Bulk	MicroPlastics, SW	Active	1/4	0.260 (6.60mm)	0.300 (7.62mm)	0.300 (7.62mm)	0.150 (3.81mm)	-

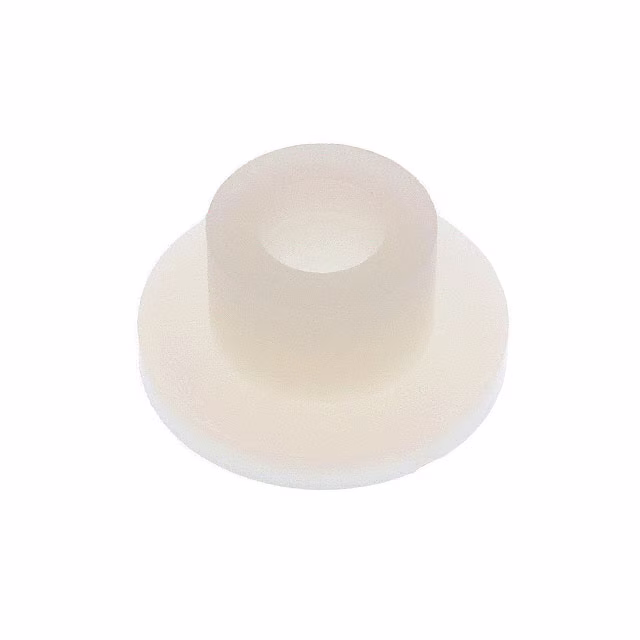

12SWS1065 SHOULDER WASHER .175 ID .513 OD Essentra Components	2,247	0.29	RFQ		Bulk	MicroPlastics, SW	Active	-	0.175 (4.45mm)	0.513 (13.03mm)	-	-	-

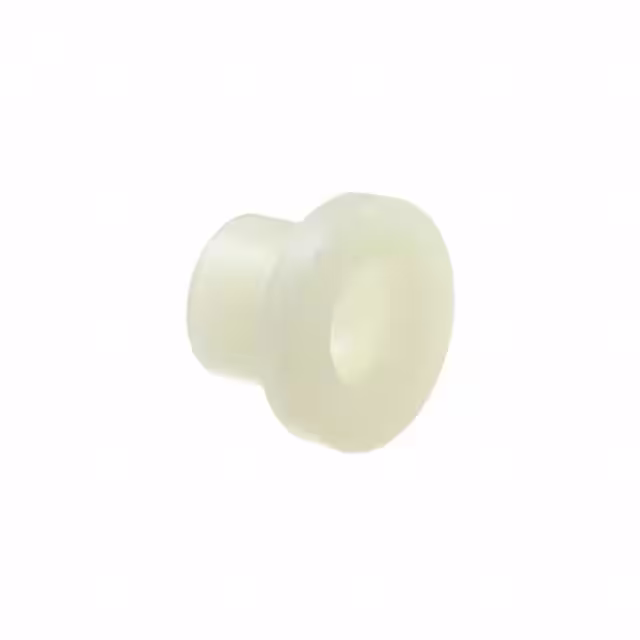

10SCM006006 SHOULDER WASHER 6.1MM ID 12.2MM Essentra Components	3,436	0.30	RFQ		Bulk	MicroPlastics, SC	Active	-	0.240 (6.10mm)	-	0.315 (8.00mm)	0.079 (2.00mm)	0.236 (6.00mm)

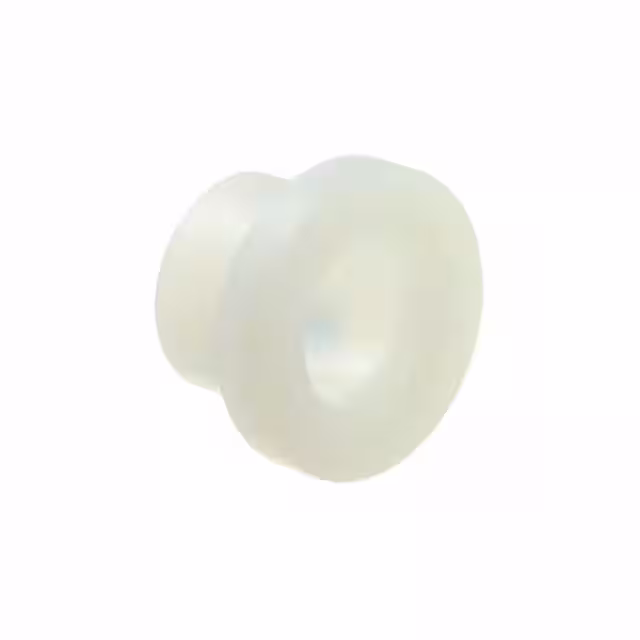

10SCM008006 SHOULDER WASHER 8.1MM ID 14.2MM Essentra Components	2,441	0.32	RFQ		Bulk	MicroPlastics, SC	Active	-	0.319 (8.10mm)	-	-	0.098 (2.50mm)	0.236 (6.00mm)

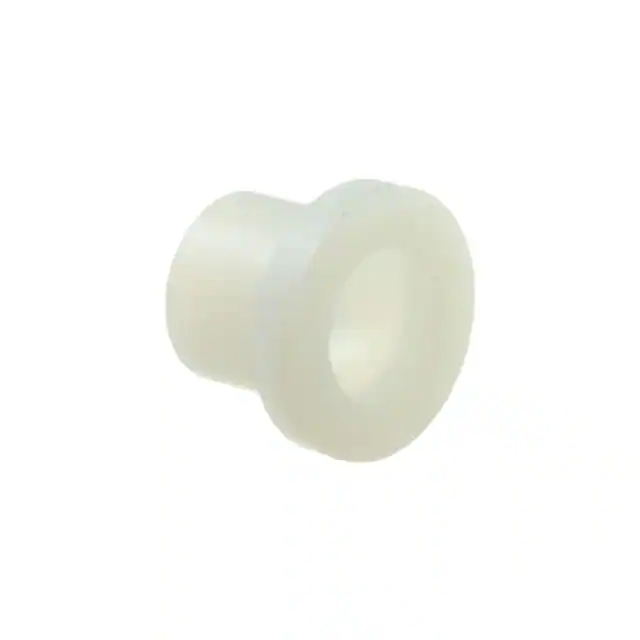

10SCM008008 SHOULDER WASHER 8.1MM ID 14.2MM Essentra Components	3,893	0.32	RFQ		Bulk	MicroPlastics, SC	Active	-	0.319 (8.10mm)	-	-	0.098 (2.50mm)	0.315 (8.00mm)

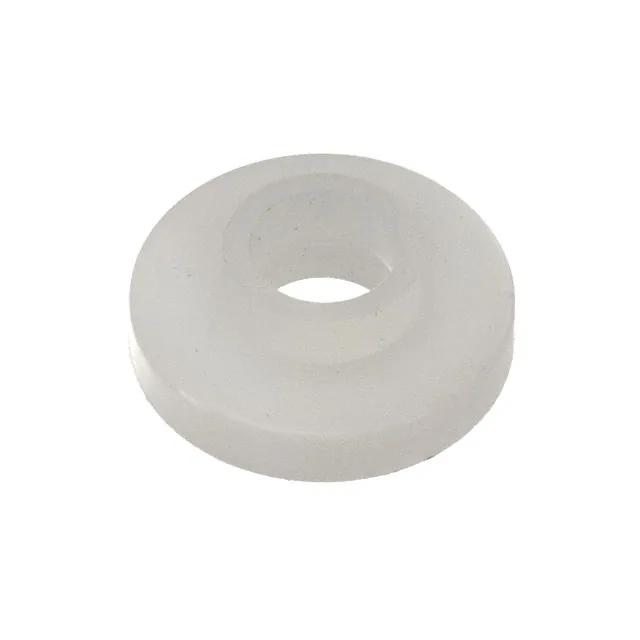

12SWS0638 SHOULDER WASHER .166 ID .438 OD Essentra Components	784	0.60	RFQ		Bulk	MicroPlastics, SW	Active	-	0.166 (4.22mm)	-	-	-	-

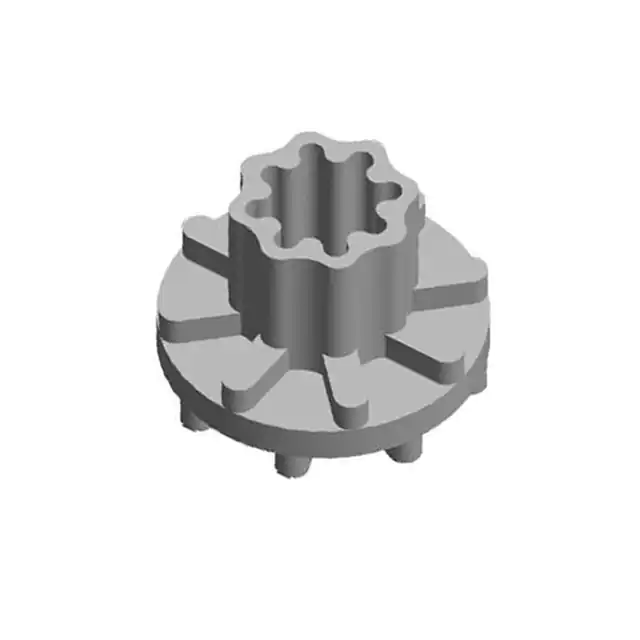

B-434-2 BUSHING 1/2 THERMOPLASTIC Aearo Technologies LLC, a 3M company	2,405	0.76	RFQ	Datasheet	Box	ISODAMP™ C-1000	Active	-	0.500 (12.70mm) 1/2	0.813 (20.65mm)	-	0.563 (14.30mm)	0.313 (7.95mm)
12SWS3694 SHOULDER WASHER .515 ID 1.125 OD Essentra Components	3,313	1.31	RFQ		Bulk	MicroPlastics, SW	Active	-	0.515 (13.08mm)	1.125 (28.58mm)	-	-	0.250 (6.35mm) 1/4

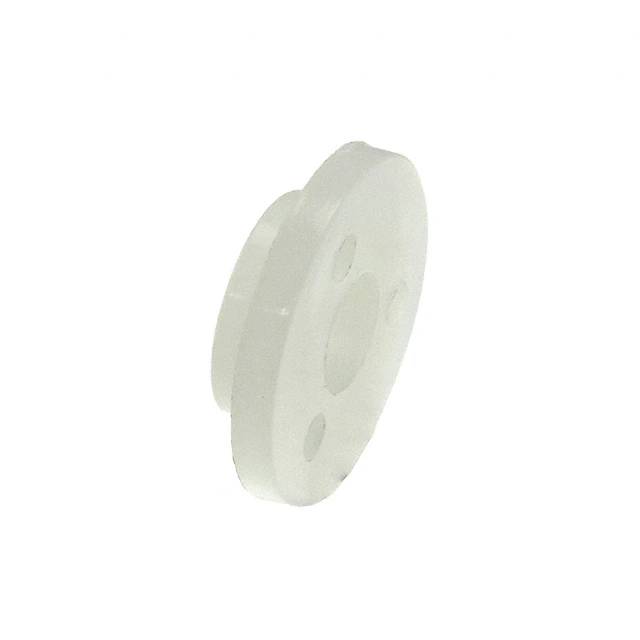

FB1270A SHOULDER WASHER, NATURAL,.255 IN Essentra Components	2,949	1.47	RFQ		Bag	Alliance Plastics, FB	Active	-	-	0.750 (19.05mm) 3/4	-	0.200 (5.08mm)	-

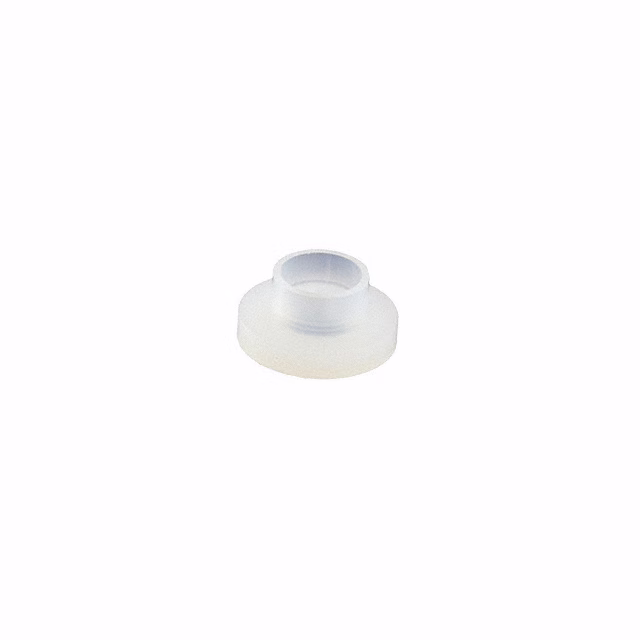

12SWS0637 SHOULDER WASHER .173 ID .344 OD Essentra Components	2,464	0.10	RFQ		Bulk	MicroPlastics, SW	Active	-	0.173 (4.39mm)	0.344 (8.74mm)	0.205 (5.21mm)	0.063 (1.60mm)	0.093 (2.36mm)
